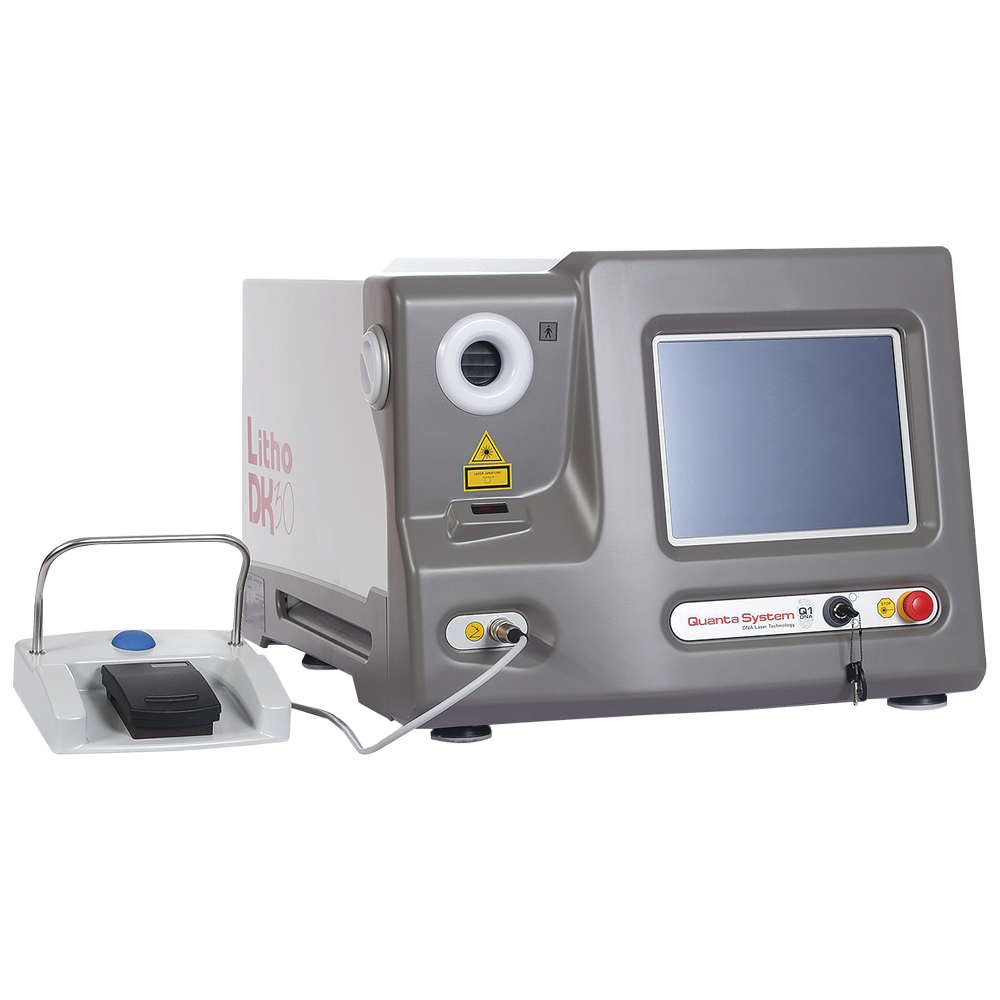

Litho DK 30 (Holmio)

Sistema láser de 2.1 micras de longitud de onda. Equipo diseñado especialmente para litotricia y otros procedimientos urológicos (ablación y vaporización).

Potencia óptima para la eliminación de cálculos, tumores, estenosis y otros tratamientos de tejido blando. Debido a su longitud de onda y a su alta absorción en agua, la profundidad de penetración es baja, proporcionando excelente hemostasia, coagulación y daño mínimo a los tejidos cercanos.


  • Litotricia.
  • Resección de tumores de vejiga.
  • Tratamiento endonasal.
  • Discectomía.
  • Artroscopia.

Dusting Effect, an added value

Quanta System introduces a new application setting: the Lithotripsy DUSTING EFFECT. This preset Application is inside the main application menu, beside Lithotripsy HARD STONE, Ablation and Coagulation.

The setting is intended for calculi, especially the renal ones, where the dusting effect lithotripsy technique could eliminate the need for basket extraction and that way reducing the total time of the procedure.

Due to the extended pulse properties, the specific settings of repetition rate and pulse energies, characteristic for dusting lithotripsy, assure more stable position of stone.

Ver video

Dusting Effect

Technical Features

  • up to 4 J Energy per Pulse
  • up to 25 Hz - Repetition Rate
  • 95-1500 μs - Pulse Duration
  • RFID Automatic Fiber Recognition System
  • 10.4" Touchscreend
  • Double Footswitch
  • Automatic Aperture Sensor
  • Frontal Footswitch Connection
  • Blast Shield Smart Access

Operative Mode

  • Ablation
  • Coagulation
  • Lithotripsy - Dusting Effect
  • Lithotripsy - Hard Stone


  • Lithotripsy
  • Excision of Bladder Tumors
  • Ureterotomy, Urethrotomy
  • Transurethral Incision of Porstate (TUIP)
  • General Surgery

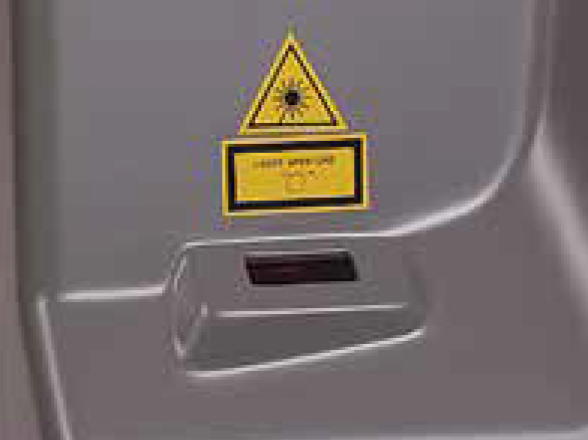

Blast shield smart access.

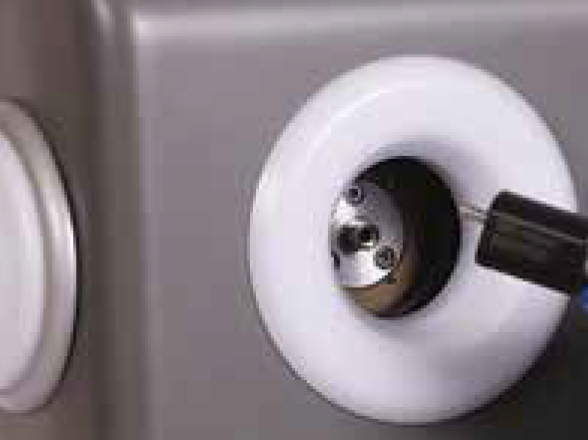

Through the RFID ber recognition system, the connected bers are automatically detected. The laser immediately sets up the adequate working parameters.

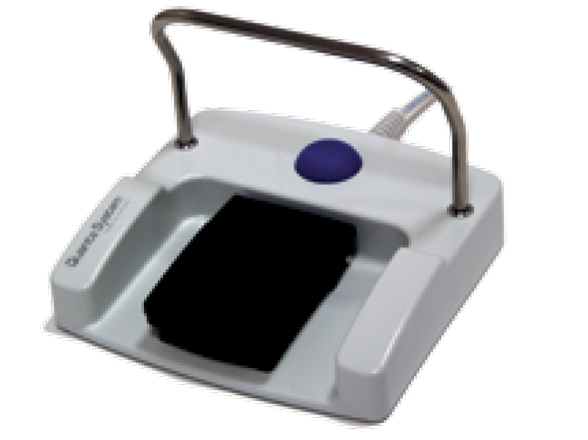

The double footswitch allows operator to control the Ready/Standby status directly by the footswitch without using the touchscreen.

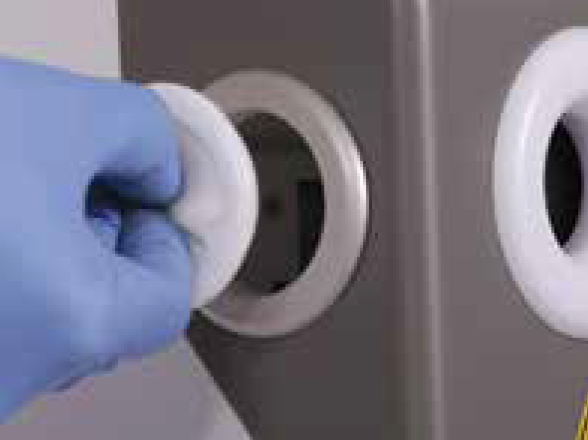

The Automatic aperture sensor enables the operator to connect the Quanta System ber with one hand and without any contact with non-sterile parts.

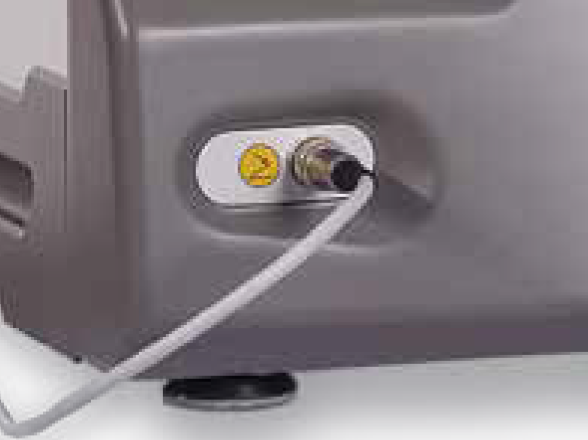

Frontal footswitch connection.

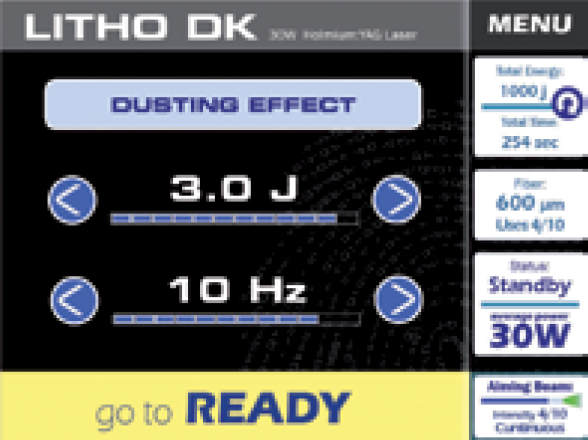

Wide color 10.4” touchscreen Interactive interface with intuitive shortcut to the main function. Smart selection of output settings depending on the operative mode.


Accesorios y fibras

  • Optical fibers with frontal emission.
    • Sterile - Single Use or Reusable
    • Core diameter from 200 µm to 1000µm
    • 3m long
  • Optical fibers with lateral emission.
    • Sterile - Single Use
    • Core diameter 600µm
    • 3m long
  • Ceramic scissor for fibers.
  • 1 pedal foot control with B7 button.
  • Cover cloth for Litho.
  • Optical blast shield for Holmium External Access.
  • Safety googles.
  • Fast male connector In-Line.
  • Interlock connector for medical devices.
